Stone Savers

1/5″ Thick Side Plates

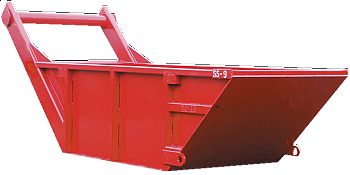

Standard Stone Saver

•  Rounded ½” thick bottoms
• ¼” thick side plates
•  Pulling lugs
•  Lifting pockets
•  8” schedule 80 pull bar

Standard Stone Saver options

•  Side extensions – further minimize costly material loss
•  Front pull bar – allows movement of Stone Saver from either end
•  Hook arm – permits use of bucket hook to attach to Stone Saver
•  Reinforced pull bar – sleeved with 7” x ½” thick pipe, reduces pull arm deformation

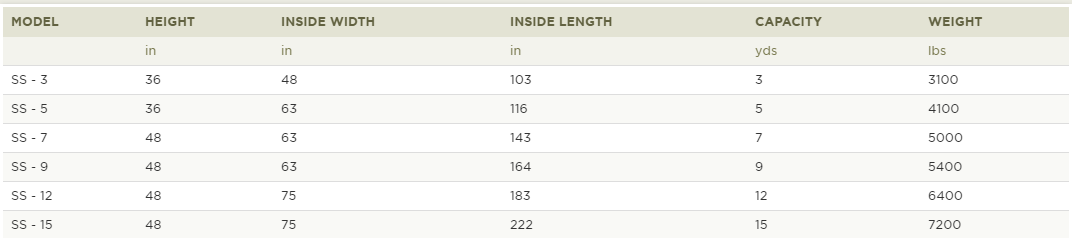

• Standard

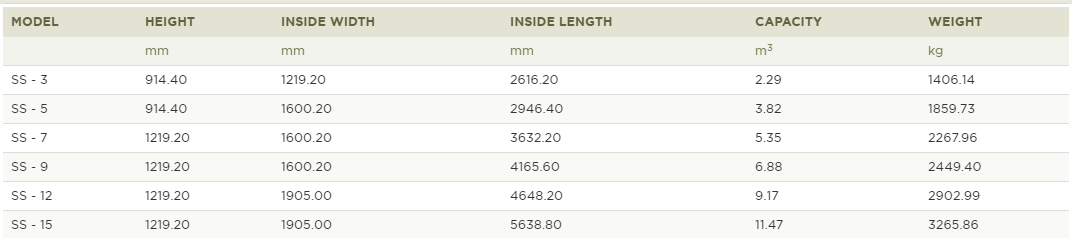

• Metric

Ideal for Larger Excavators

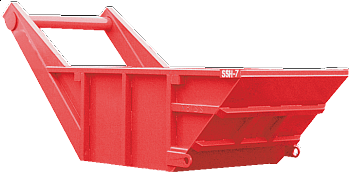

Heavy Duty Stone Saver

Pro-Tec Equipment’s Heavy Duty Stone Savers are ideal for larger excavators and severe jobsite conditions.

• Rounded ½” thick bottoms
• 3/8” thick side plates
• Reinforced ends
• Pulling lugs
• 8” schedule 80 pull bar
• 8” Schedule 120 pull bar on heavy duty Stone Savers 12 cubic yards or larger
• Full-length internal wear bars
• Reinforced arm gussets
• Lifting pockets

Heavy Duty Stone Saver options

• Side extensions – further minimize costly material loss
• Front pull bar – allows movement of Stone Saver from either end
• Hook arm – permits use of bucket hook to attach to Stone Saver
• Reinforced pull bar – sleeved with 7” x ½” thick pipe, reduces pull arm deformation
• Wheel attachment – available as a smooth or padfoot drum – enables smaller excavators to handle larger, full Stone Savers

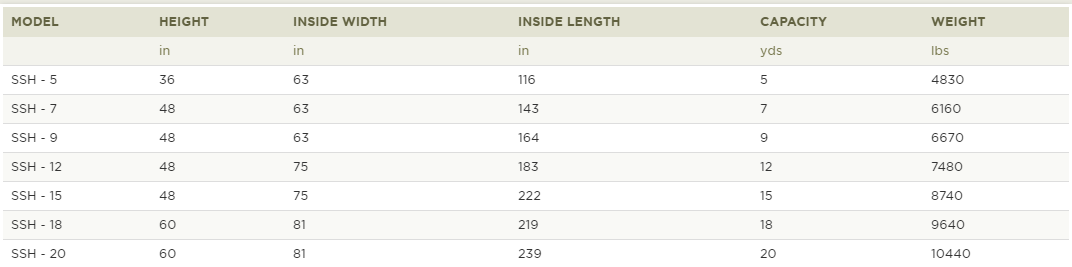

• Standard

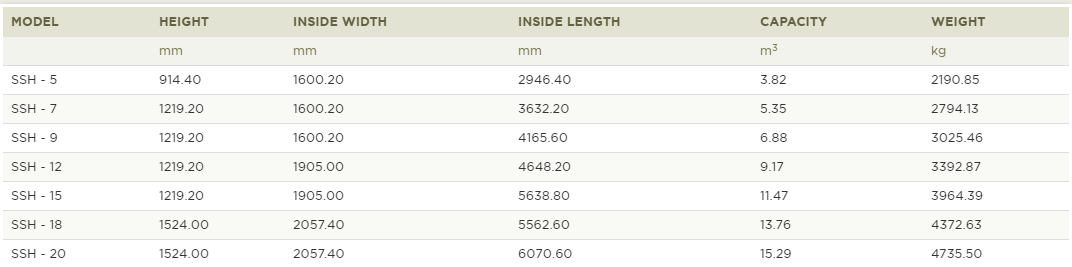

• Metric

Ideal for Larger, Wider, Excavator Buckets

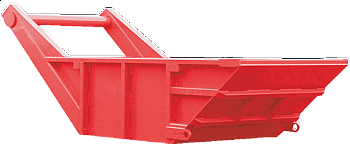

Extra Wide Stone Saver

Built off the same platform as the Heavy Duty Stone Savers, the Pro-Tec Equipment Extra Wide Stone Savers are designed to accommodate larger, wider excavator buckets, while still being able to be transported over the road without wide-load permits.

• Rounded ½” thick bottoms
• 3/8” thick side plates
• Full-length internal wear bars
• Reinforced ends
• Reinforced arm gussets
• Pulling lugs
• Lifting pockets
• 8” schedule 80 pull bar
• 8” Schedule 120 pull bar on heavy duty Stone Savers 12 cubic yards or larger

Extra Wide Stone Saver options

• Side extensions – further minimize costly material loss
• Front pull bar – allows movement of Stone Saver from either end
• Hook arm – permits use of bucket hook to attach to Stone Saver
• Reinforced pull bar – sleeved with 7” x ½” thick pipe, reduces pull arm deformation
• Wheel attachment – available as a smooth or padfoot drum – enables smaller excavators to handle larger, full Stone Savers

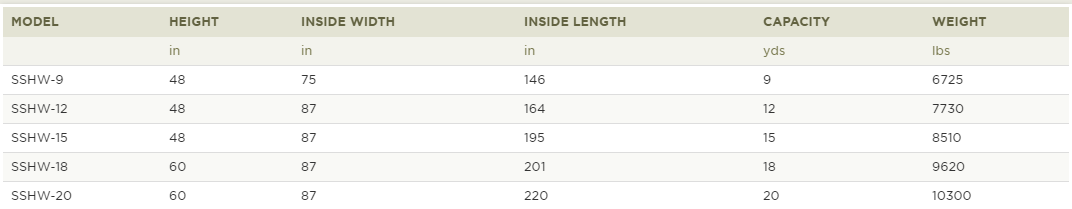

• Standard

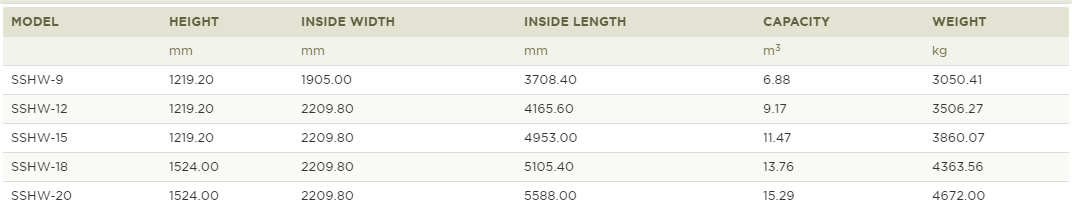

• Metric
